GSM Monitoring Camera Spiritech

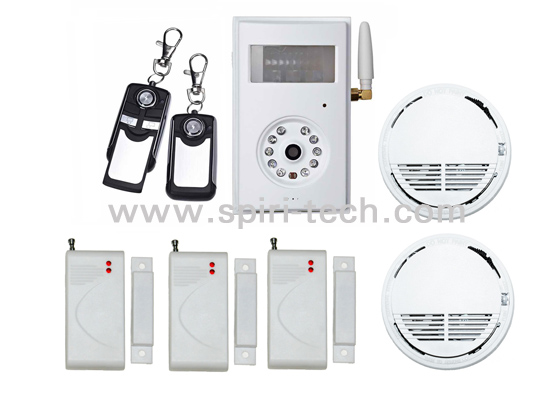

PACK 3:
- CAMERA
- 3 DOOR WINDOW SENSORS
- 2 SMOKE SENSORS

All technical features

Faced with burglary, the best prevention is to properly equip your home.

Do not leave your house without protection!

Prevention is better than cure! Unfortunately, it is usually after a burglary that an owner strengthen his home protection.

Spiritech Wireless Monitoring GSM Camera allows you to keep an eye and an ear-on whatever you want.

You can install it inside as outside, at home or in your house, in a warehouse or office.

Equipped with a motion detector and an infrared night vision, you keep an eye on your belongings night and day.

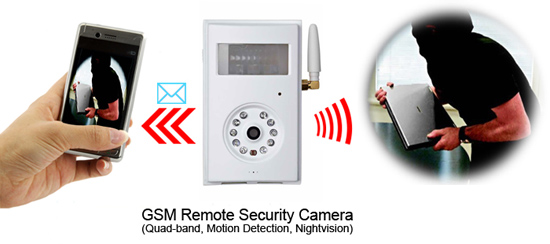

In case of intrusion or identified event, the Monitoring Camera Spiritech alerts you instantly via SMS and / or MMS messages directly on your mobile phone.

View live and at distance monitoring images via MMS from any GSM mobile phone, Palm Pilot, Pocket PC or Smartphone.

Compatible with all GSM mobile phone able to receive pictures by MMS.

24 hours a day service accessible worldwide from your mobile phone.

Unique & simple service accessible at all times in real-time.

The Spiritech monitoring camera is the guardian angel of your home.

When it detects motion, the camera takes 3 to 8 pictures and send them via MMS directly on your mobile phone or your E-mail address.

Remote Control: you control & configure the monitoring camera with SMS commands from your mobile phone.

SMS command example:
# 01 # to activate the Camera
# 02 # to disable the Camera
# 03 # to capture images

With the GSM monitoring camera, you drive your security from your mobile phone.

You set up the monitoring camera to decide your recipient alerts.

The GSM monitoring camera Spiritech is completely autonomous.

No installation required. No need wifi network, computer or server or other types of material.

Insert a SIM card inside the monitoring camera and the wireless camera connects directly to your GSM network operator.

Options Details:

The monitoring camera use GSM a SIM card (SIM card not supplied)

Remote control: control and configure your monitoring camera with SMS commands from your mobile phone
SMS command example:
# 01 # to activate the monitoring camera
# 02 # to disable the monitoring camera

Real-time Audio: call the monitoring camera number to listen sound of your secured place.

Motion detection: detect and alarm any motion within the monitoring

Sensor Detection: associate and connect up to 15 detectors (315 / 433 MHz) such as door magnet sensor detector, infrared body sensor, smoke sensor, gas sensor, or any other sensor detector operating in 315 / 433 MHz.

The KIT “Spiritech monitoring camera” PACK-3 includes THREE door magnet sensor (433MHZ) and TWO smoke sensors (433MHZ)

In case of intrusion and door opening, the door magnet sensor sends a signal to the monitoring camera which takes images 3-8.

The monitoring camera sends an alert by SMS that you receive instantly on your mobile phone.

Message example: "Received Alarm Door No. 1, the amount of image is 3-8 (FR)"

Then the monitoring camera sends 3-8 images of the detected intrusion by the sensor directly on your mobile phone via MMS.

Night Infrared Vision (infrared light): even in dark environments or total darkness, the monitoring camera send clear images with its built-in infrared LEDs.

You keep an eye on your belongings night and day.

E-mail alert: you can set the camera to receive alerts and captured images on your email.

Multimode Alarm: camera can send warning messages by SMS, MMS, or by e-mail or phone-call.

Fixed time monitor: monitor schedule can be set flexibly with multiple time intervals

Easy installation: wireless connection, the monitoring camera can be installed at any place you wanted without distance limitation.

Accessory: include 2 remote control for manual operation (ON / OFF) and a panic button - emergency alert - 3 door magnet sensors and 2 smoke sensors (433MHZ)

Once activated the button "Emergency Alert", the monitoring camera will send a warning message on the mobile phones of preconfigured people (Assistant Professor, Family Guest).

Build-in Lithium battery: rechargeable battery ensuring operation in case of external power failure (up to 24 hours autonomous)

Direct access to Manual: just download on your mobile phone by SMS command the list and summary of the details of your current camera settings.

User Authorization Level

Security level: monitoring camera uses 3 security level Access

Number Master (Master): 100% control

Authorized to perform 100% of operations and set up at distance

Access to the complete control panel

Management of access "Family & guest" (+ passwords)

Management of image settings (quantity, interval, format, brightness, orientation, contrast and compression degree)

Management Alerts reception (Mobiles and / or e-mail)

Management Alert types (SMS, MMS, call, e-mail)

Management of the monitoring (Camera ON / OFF, Motion Detector ON / OFF, Infrared Detector ON / OFF ...)

Number Family (family): limited control

Listen in voice, get images, add the sensor & remote control (ON / OFF) , receive alerts

Guest (Guest): limited usage

Receive alerts, get images


Technical features

- Weight: 160g
- Size: 130 x 75 mm x 30
- Colour: Black
- Require a SIM card GSM frequency bands: 900 / 1800 MHz - (850 / 1900 MHz Optional)
- Interfaces: SMS, MMS, e-mail (Internet SMTP)
- Image Format: JPEG
- Image Resolutions: 640x480 - 320x240 - 160x128
- Camera 300K pixel, shooting Angle 60.8 ° degree
- Build-in Motion Detector
- Build-in Infrared Light (Night Infrared Vision)
- Shooting night distance: up to 6 meters
- Receiving band detectors (door magnet sensor, gas sensor, smoke sensor...) 315 or 433 MHZ
- Maximum 15 detector (door magnet sensor, gas sensor, smoke sensor...) per camera.
- Power: DC-5.5V - 100-240V/50Hz

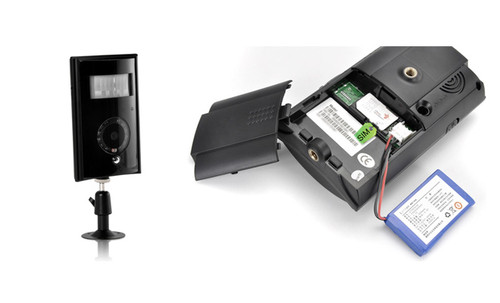

- Build-in Lithium Battery 800mAh (up to 24 hours autonomous)
- Remote operational distance = 10 meters

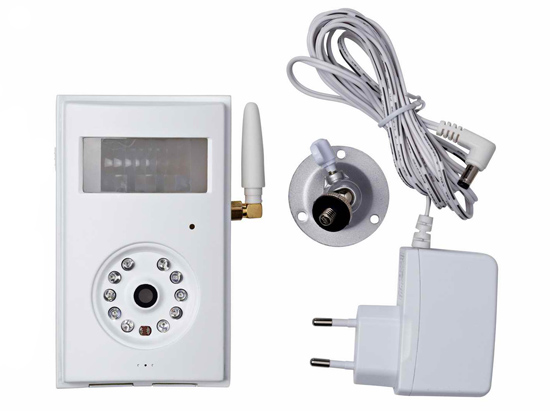

PACK CONTENT:


Supplementary door magnet sensor available here
Supplementary Smoke sensor Fire Sensor available here
