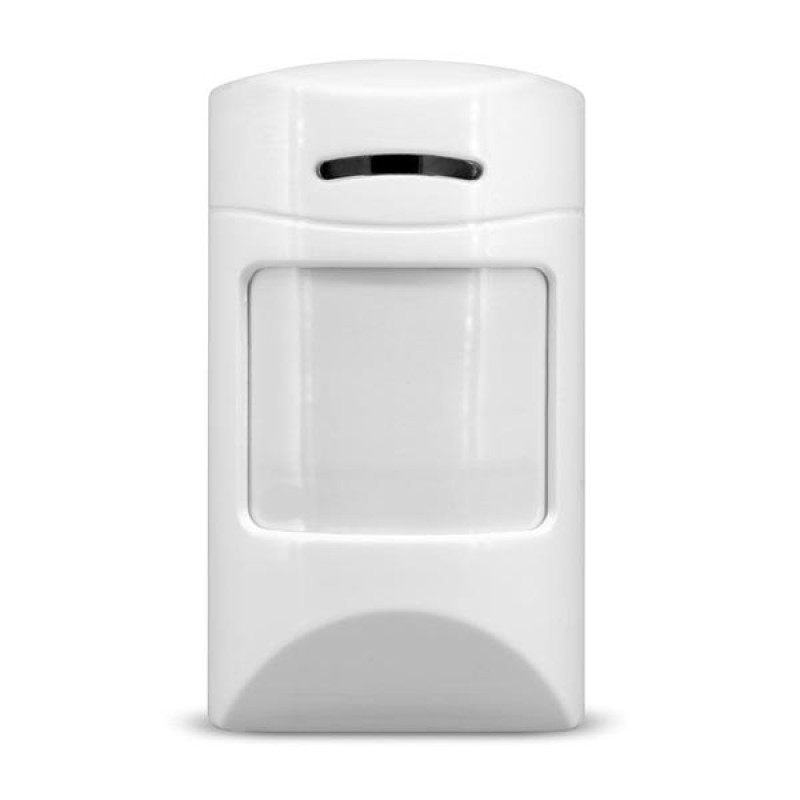

Security Motion sensor

Infrared detector Security Motion sensor

The Security Motion Sensor wireless PIR detector allows, once associated with your monitoring alarm system, to protect your home or any other place to control (residence, second home, business office, garage ...)

This security device instantly detects any types of movement when someone passes through the sensor's detection field and sends immediately the signal to your anti-burglar monitoring system which alerts you on your smartphone.

You are thus directly and quickly informed in case of intrusion or infraction.

The infrared detector Security Motion Sensor is rotatable at 180° and tilts at 90° for an optimized monitoring.

Easy to install, you can put it on the wall or the ceiling for a large choice of uses.

The PIR detector Security Motion Sensor is wireless, so it can be placed wherever you want to secure your environment.

With its integrated indicator, you are informed in case of low battery or damage.

Each security PIR detector get his own coding. It is possible to associate several sensors to the same monitoring system with its independent coding function.

Performances

Auto temperature compensation.

Send alarm signal by RF.

Fast and easy installation.

No wiring.

Test mode.

Low battery indication.

Technical specifications

- Operating voltage: DC 3V

- Detecting distance: 9-12 meters

- Detecting angle: 110°

- Frequency: 433.92 MHZ

- Radio distance: 100 meters (open area)

- Low battery indicator: green LED

- Alarm indicator: red LED

- Operating temperature: -10°C - +50°C

- Dimension: 106x 60x46 mm

Included

1 x Security Motion sensor

2 x LR6 AA

1 x Mounting kit

1 x User manual in English (UK)

Compatibility

For use with the wireless 3G HD GSM monitoring camera

Operates in 433.92 MHZ frequency

Compatible with all anti-burglar and monitoring alarm security systems using the transmission frequency above
